Installation [09/2015 - ]: Procedure

  1. INSTALL FUEL PUMP RESISTOR

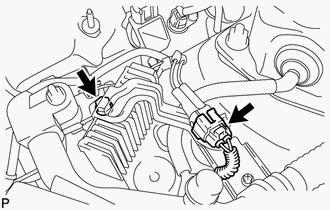

    1. Install the fuel pump resistor with the bolt.
      GTY632154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    2. Connect the connector.
  2. INSTALL ENGINE ROOM SIDE COVER LH

    Refer to PROCEDURE - Step 16
