Brake Control System - Service Information
>>
Yaw Rate And Acceleration Sensor
>>
Components [09/2015 - ]
>>
Illustration
Components [09/2015 - ]: Illustration

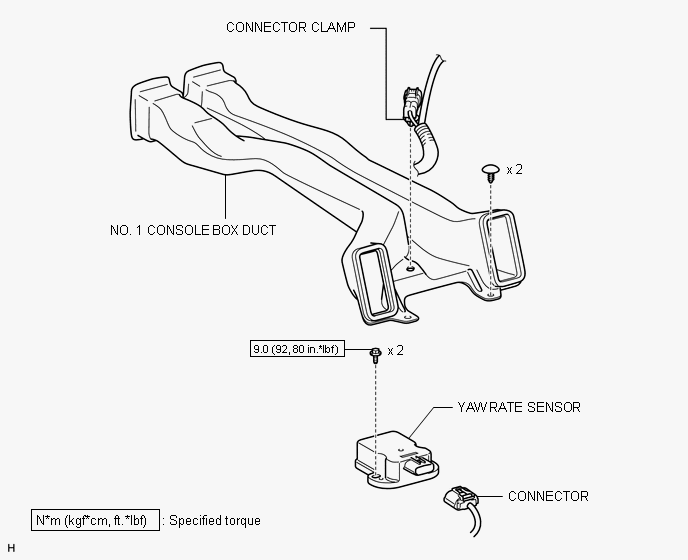

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
