Components [09/2015 - ]: Illustration

Fig 1: Skid Control ECU Replacement Component (1 Of 2)
GTY618393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

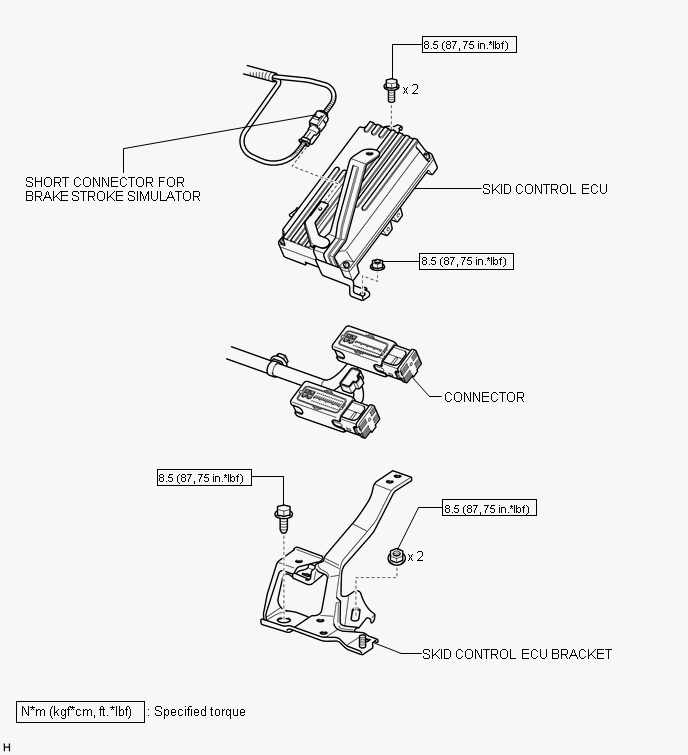

Fig 1: Skid Control ECU Replacement Component With Torque Specifications (2 Of 2)
GTY660223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
