Components [09/2015 - ]: Illustration

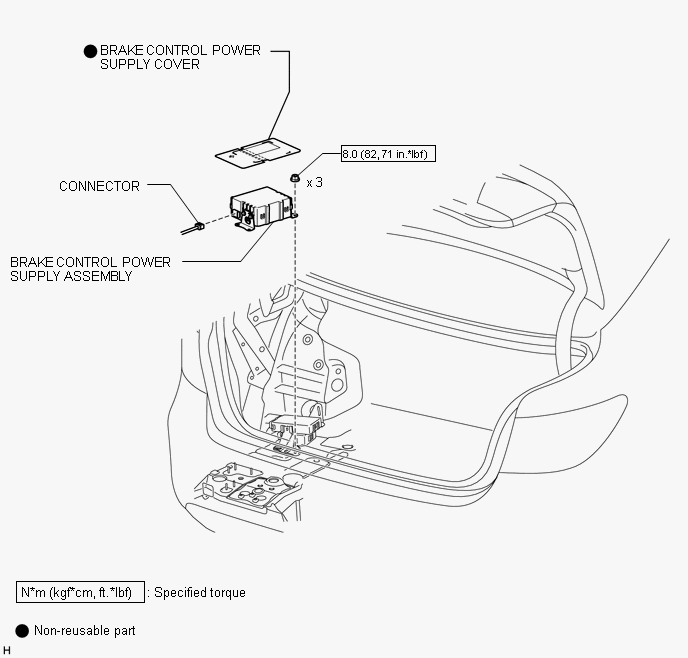

Fig 1: Brake Control Power Supply Replacement Component With Torque Specifications (1 Of 2)
GTY652218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

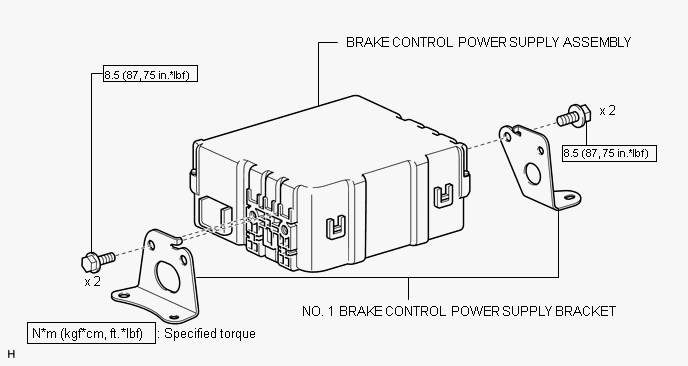

Fig 1: Brake Control Power Supply Replacement Component With Torque Specifications (2 Of 2)
GTY625199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
