Disposal [09/2015 - ]: Procedure

  1. DISPOSE OF BRAKE ACCUMULATOR PUMP

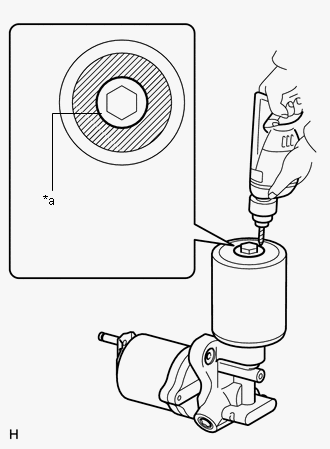

    1. Using a drill, slowly make a hole at the circumference of the inner circle of the caution label and discharge the gas.
      GTY414203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Circumference of the Inner Circle of the Caution Label
      WARNING:

      Be sure to wear protective glasses as fragments may fly out due to pressure.

      HINT:

      • Drill the hole approximately 10 mm (0.394 in.) deep.
      • The gas is nitrogen which is colorless, odorless, and harmless.
