Inspection [09/2015 - ]: Procedure

  1. INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

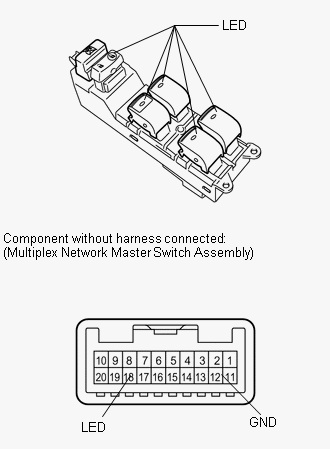

    1. Check that the LED illuminates.
      GTY404832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply battery voltage to the master switch and check that the LED illuminates.

      OK

      Measurement Condition Specified Condition
      Battery positive (+) → 18 (LED)
      Battery negative (-) → 12 (GND)      		 LED illuminates
      1. If the result is not as specified, replace the multiplex network master switch assembly.
