Removal [09/2015 - ]: Procedure

  1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

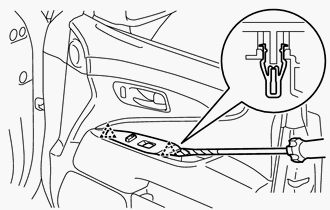

    1. Using a screwdriver, detach the 2 clips.
      GTY116532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the 2 connectors and armrest base panel assembly.
      GTY263405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 2 claws and remove the power window regulator switch assembly.
      GTY642085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
