Installation [09/2015 - ]: Procedure

  1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

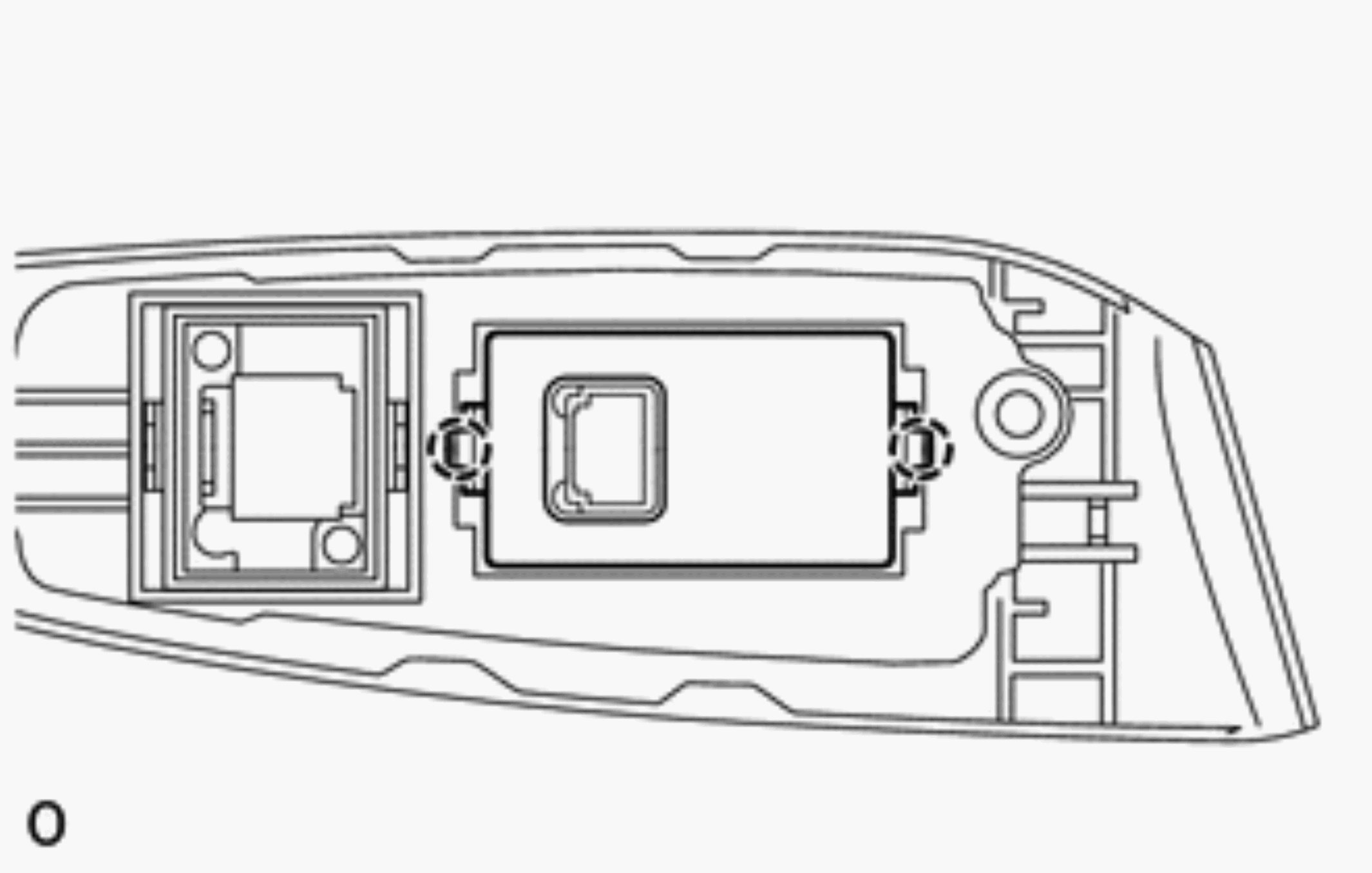

    1. Attach the 2 claws to install the power window regulator switch assembly.
      GTY642085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

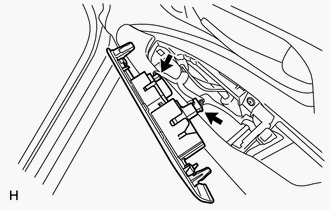

    2. Connect the 2 connectors.
      GTY263405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

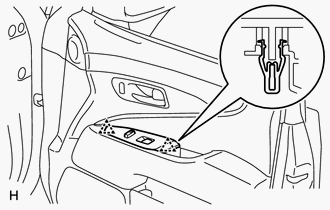

    3. Attach the 2 clips to install the armrest base panel assembly.
      GTY628287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
