Removal [09/2015 - ]: Procedure

  1. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE MULTI-DISPLAY CONTROLLER SUB-ASSEMBLY WITH BRACKET
    1. Disconnect the connectors.

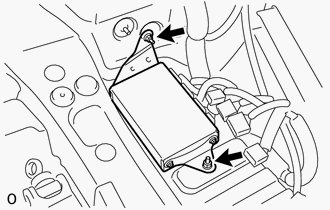

      GTY495387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and multi-display controller sub-assembly with bracket.
  3. REMOVE TELEVISION BRACKET
    1. Remove the 2 bolts and television bracket.
      GTY495386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE TELEVISION BRACKET
    1. Remove the 2 bolts and television bracket.
      GTY495385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
