Installation [09/2015 - ]: Procedure

  1. INSTALL TELEVISION BRACKET
    1. Set the bracket's aligning protrusions labeled A into the multi-display controller sub-assembly holes.
      GTY506272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the television bracket with the 2 bolts labeled B.
  2. INSTALL TELEVISION BRACKET

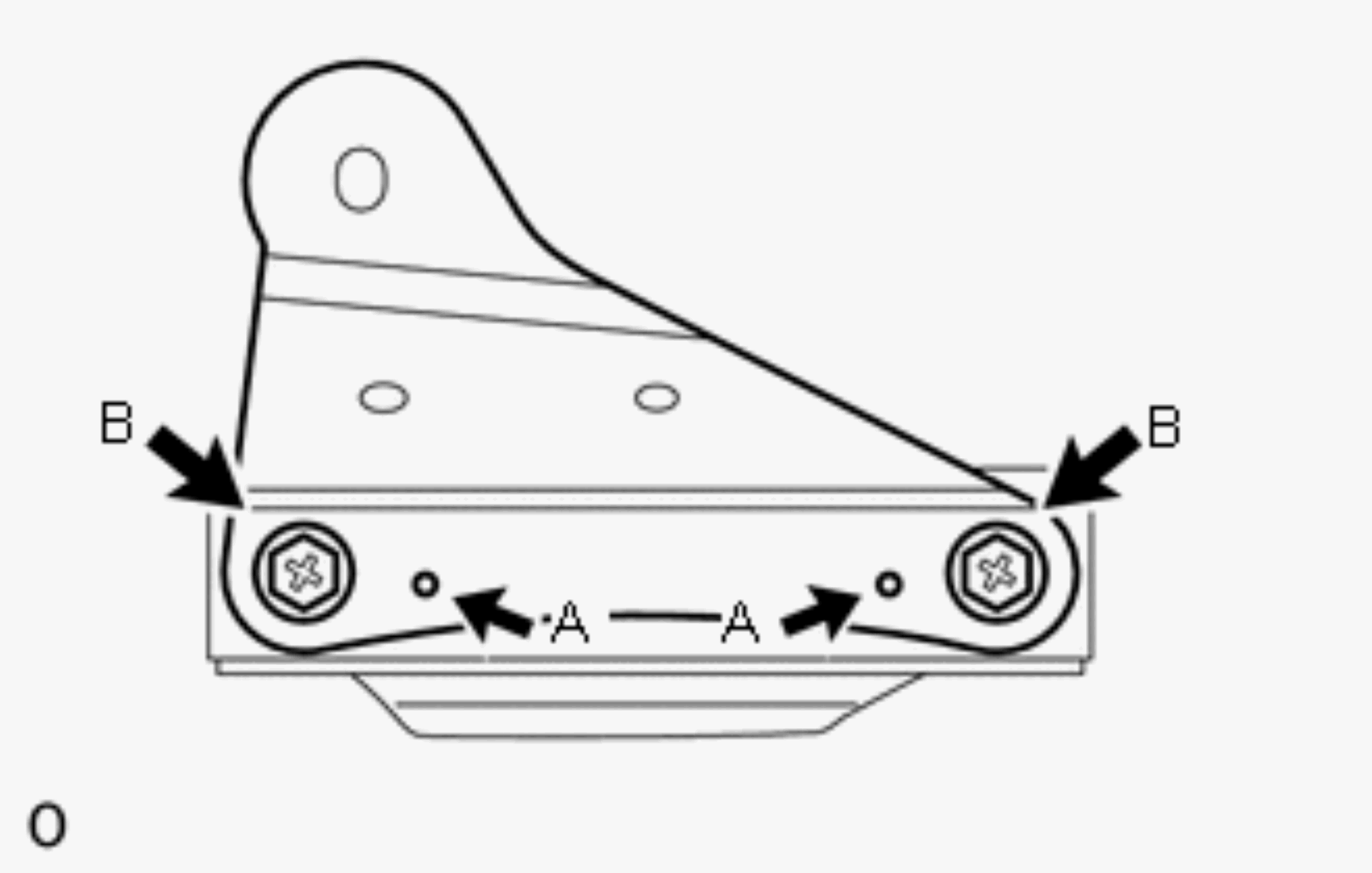

    1. Set the bracket's aligning protrusions labeled A into the multi-display controller sub-assembly holes.
      GTY646172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the television bracket with the 2 bolts labeled B.
  3. INSTALL MULTI-DISPLAY CONTROLLER SUB-ASSEMBLY WITH BRACKET
    1. Install the multi-display controller sub-assembly with the 2 nuts in the order shown in the illustration.
      GTY515651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connectors.
  4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY

    (Refer to INSTALLATION [09/2015 - ] )
