Components [04/2013 - ]

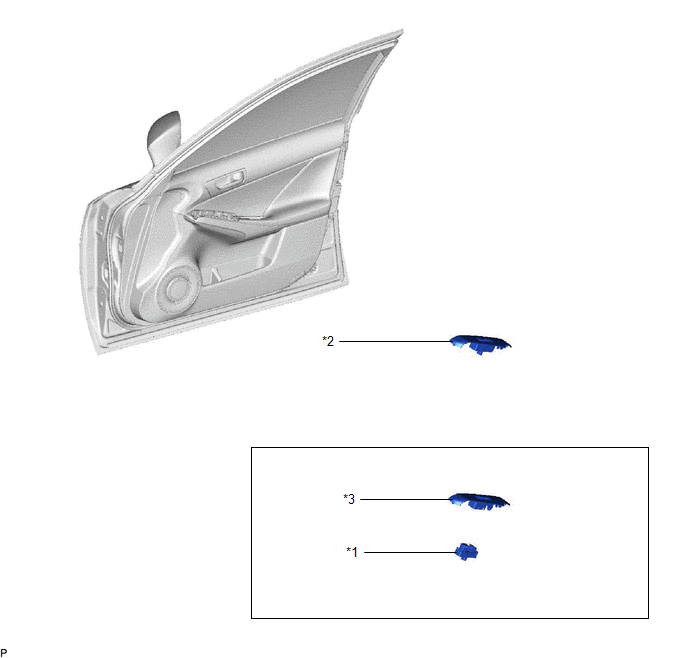

Fig 1: Front Passenger Side Power Window Switch Replacement Components
GTY465828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 POWER WINDOW REGULATOR SWITCH ASSEMBLY *2 POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
*3 FRONT DOOR ARMREST BASE PANEL - -
