Components [04/2013 - 10/2016]

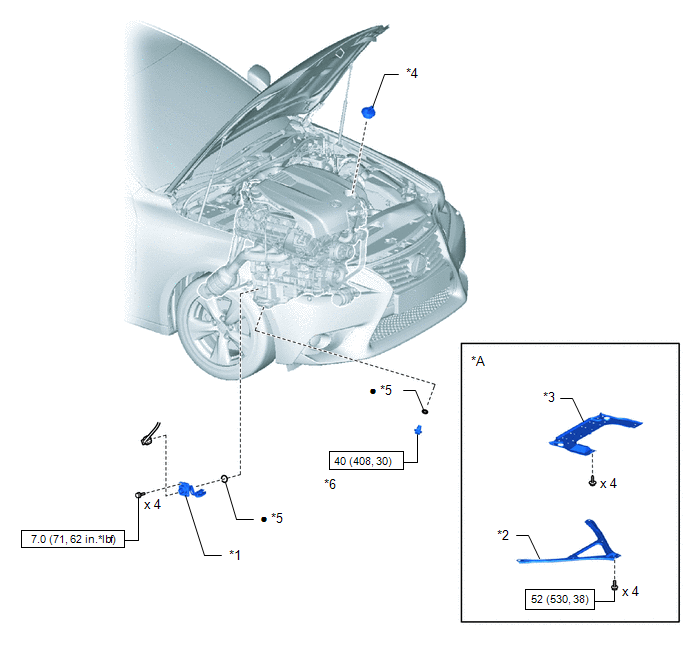

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications [04/2013 - 10/2016]
GTY457849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ NO. 2 ENGINE UNDER COVER - -
*1 ENGINE OIL LEVEL SENSOR *2 FRONT SUSPENSION MEMBER BRACE
*3 NO. 2 ENGINE UNDER COVER *4 OIL FILLER CAP
*5 GASKET *6 OIL PAN DRAIN PLUG
N*m (kgf*cm, ft*lbf) : Specified torque • Non-reusable part
