Removal [04/2013 - ]: Procedure

  1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 4 [09/2020 - ]

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
    1. w/o Screw:
      1. Disengage the 12 claws and remove the multiplex network master switch assembly from the front door armrest base panel.

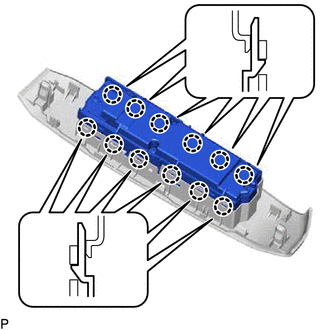

        GTY468496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Screw:
      1. Remove the 3 screws.

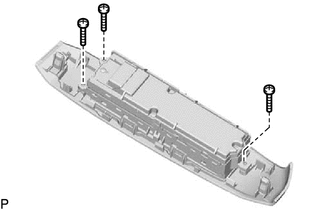

        GTY468497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

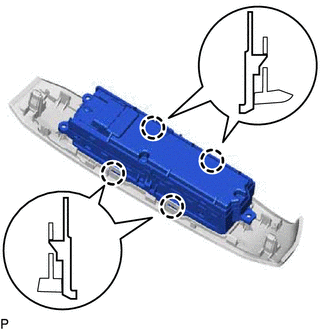

      2. Disengage the 4 claws and remove the multiplex network master switch assembly from the front door armrest base panel.
        GTY471223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
