On-Vehicle Inspection [08/2015 - ]: Procedure

  1. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to REMOVAL [08/2015 - ]

  2. INSPECT CAMSHAFT TIMING GEAR BOLT
    1. Check the stroke of the plunger in the center of the camshaft timing gear bolt.

      Standard Stroke

      4.5 mm (0.177 in.) or more

      HINT:

      When pressing the plunger, there may be a stepped feeling. This is not a malfunction.

      If the result is not as specified, replace the camshaft timing gear bolt.

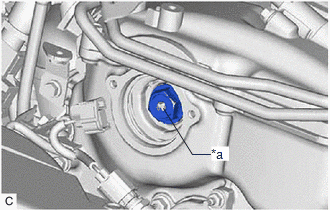

      GTY625233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plunger
  3. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to INSTALLATION [08/2015 - ]
