Components [08/2015 - ]

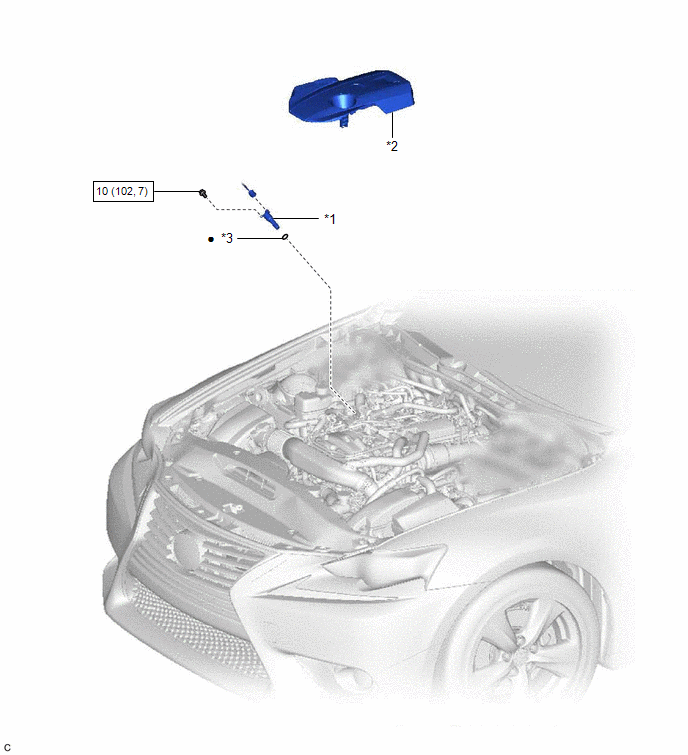

Fig 1: Camshaft Oil Control Valve (for Exhaust Side) Replacement Components With Torque Specifications
| *1 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | O-RING | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
