Components [10/2016 - ]

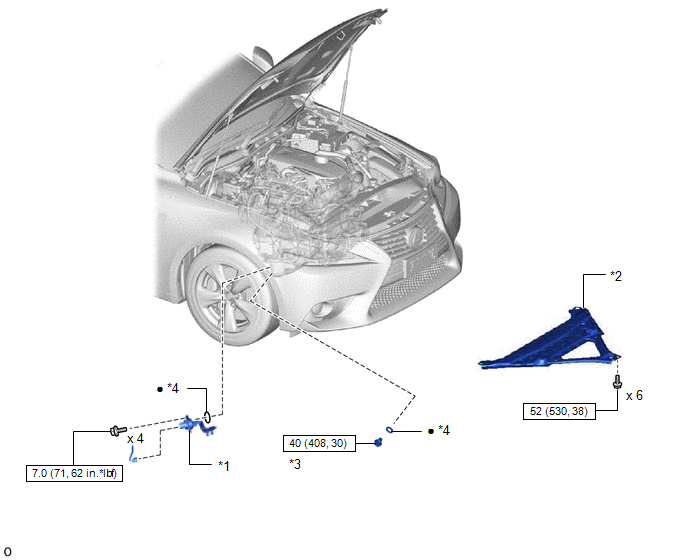

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications [10/2016 - ]
GTY672545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE OIL LEVEL SENSOR *2 FRONT SUSPENSION MEMBER BRACE
*3 OIL PAN DRAIN PLUG *4 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
