Components [08/2015 - 10/2016]

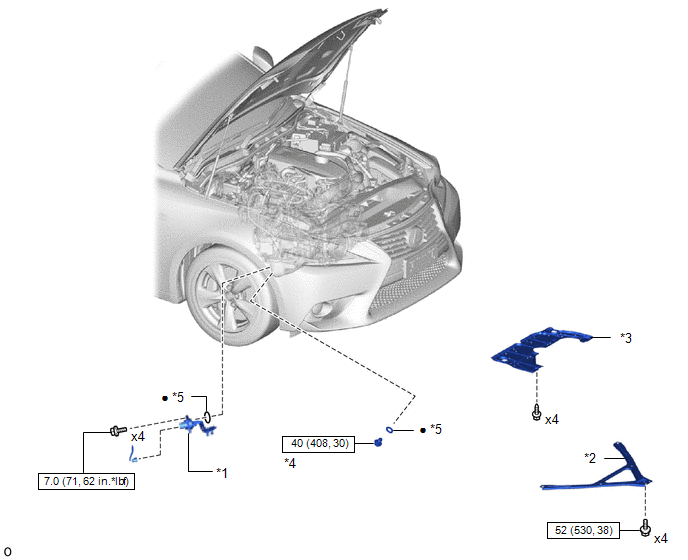

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications [08/2015 - 10/2016]
GTY646437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE OIL LEVEL SENSOR *2 FRONT SUSPENSION MEMBER BRACE
*3 NO. 2 ENGINE UNDER COVER *4 OIL PAN DRAIN PLUG
*5 GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
