Components [08/2015 - ]

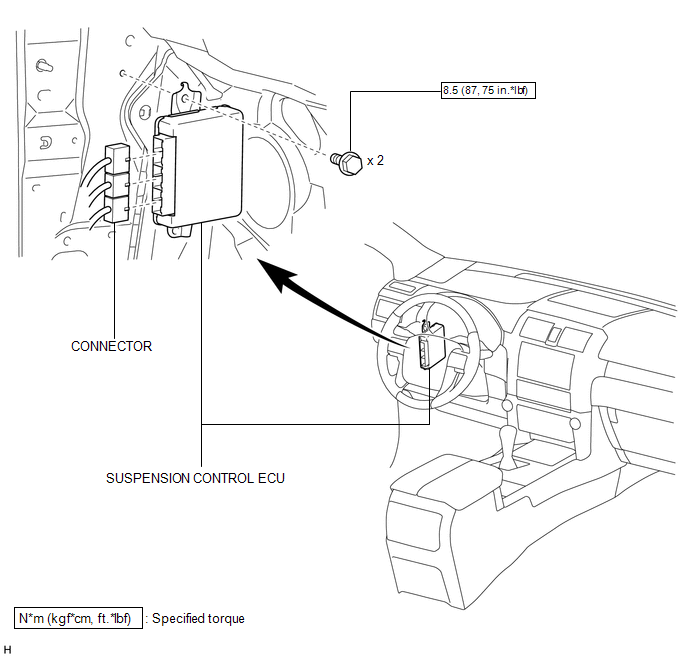

Fig 1: Suspension Control ECU Replacement Components With Torque Specifications [08/2015 - ]

GTY675944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
