Installation [08/2015 - ]: Procedure

  1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
    1. Apply a light coat of gasoline or spindle oil to a new O-ring and install the O-ring to the pressure regulator.
      NOTE:
      • Make sure that there are no scratches or foreign matter in or around the insertion hole of the delivery pipe.
      • When inserting the pressure regulator, be careful not to damage the O-ring.

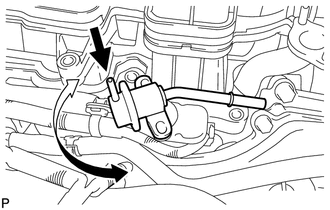

    2. While turning the pressure regulator left and right, install it to the delivery pipe.
      GTY266712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Connect the No. 1 air hose to the pressure regulator.
    5. Connect the No. 2 fuel tube to the pressure regulator (Refer to PRECAUTION [08/2015 - ] ).
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2021] , or refer to INITIALIZATION [08/2021 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).

  3. INSTALL AIR CLEANER CAP AND HOSE

    Refer to PROCEDURE - Step 53 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 53 [08/2020 - ]

  4. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 80 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 80 [08/2020 - ]

  5. INSPECT FOR FUEL LEAK

    See step  18
