Repair [08/2015 - ]: Procedure

  1. REPAIR DEFOGGER WIRE

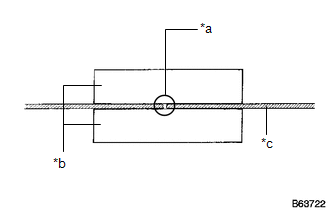

    GTY658980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Clean the broken wire tips with grease, wax and silicone remover.
    2. Place masking tape along both sides of the wire.
    3. Thoroughly mix the repair agent.
      TEXT IN ILLUSTRATION

      *a Repair Point
      *b Masking Tape
      *c Broken Wire

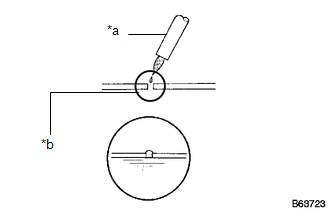

    4. GTY614152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a fine tip brush, apply a small amount of the agent to the wire.

      TEXT IN ILLUSTRATION

      *a Fine Tip Brush
      *b Repair Point
    5. After a few minutes, remove the masking tape.
      NOTE:

      Do not allow electricity to flow in the defogger wire for at least 24 hours.
