Inspection [08/2015 - ]: Procedure
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
- Check that the LED illuminates.
- Apply battery voltage to the master switch and check that the LED illuminates.
OK
Measurement Condition Specified Condition Battery positive (+) → 18 (LED)
Battery negative (-) → 12 (GND)LED illuminates - If the result is not as specified, replace the multiplex network master switch assembly.

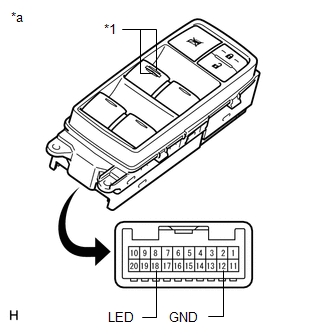

TEXT IN ILLUSTRATION*1 LED *a Component without harness connected
(Multiplex Network Master Switch Assembly)
- Apply battery voltage to the master switch and check that the LED illuminates.
- Check that the LED illuminates.
