Installation [08/2015 - ]: Procedure

INSTALL BACK DOOR STAY BOLT
1. When replacing the back door stay bolt with a new one:
  1. Clean the threaded portion on the vehicle body with non-residue solvent.
  2. Install the back door stay bolt.
    Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)
2. When reusing the back door stay bolt:
  1. Clean the threaded portion on the vehicle body with non-residue solvent.
  2. Apply adhesive to the threads of the back door stay bolt.
    Adhesive

    Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
  3. Install the back door stay bolt.
    Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

INSTALL BACK WINDOW STAY ASSEMBLY LH

Install the 2 stop rings to the back door stay assembly.

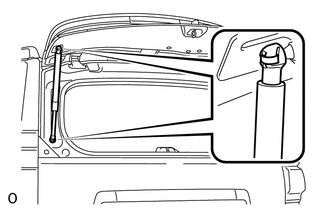

GTY274469

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the back window stay assembly.

WARNING:

Install the back window stay while supporting the back door glass by hand.

Check that the back window stay is attached to the ball joint and cannot be pulled off.
