Removal [08/2015 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT ASSEMBLY
    1. Remove the instrument panel reinforcement assembly with air conditioning unit assembly (Refer to REMOVAL [08/2015 - 08/2020] , or refer to REMOVAL [08/2020 - 08/2021] , or refer to REMOVAL [08/2021 - ] ).
  2. REMOVE ID CODE BOX (IMMOBILISER CODE ECU)

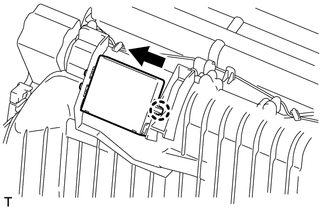

    1. Move the ID code box (immobiliser code ECU) in the direction of the arrow in the illustration to detach the claw.
      GTY266209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

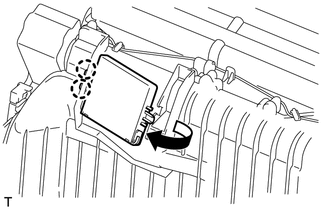

    2. Move the ID code box (immobiliser code ECU) in the direction of the arrow to detach the 2 claws and remove the ID code box (immobiliser code ECU).
      GTY279252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
