Front Camera
>>
Components [08/2019 - ]
Components [08/2019 - ]

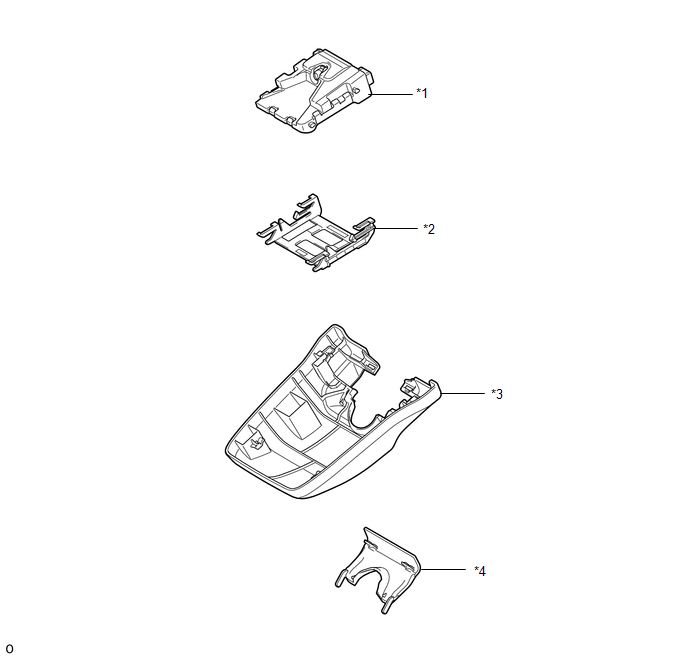

Fig 1: Front Camera Replacement Components [08/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FORWARD RECOGNITION CAMERA
*2
FORWARD RECOGNITION LATCH
*3
NO. 1 FORWARD RECOGNITION COVER
*4
NO. 2 FORWARD RECOGNITION COVER
