Inspection [08/2019 - ]: Procedure

  1. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Measure the resistance (for vehicles with vehicle-to-vehicle distance control mode).

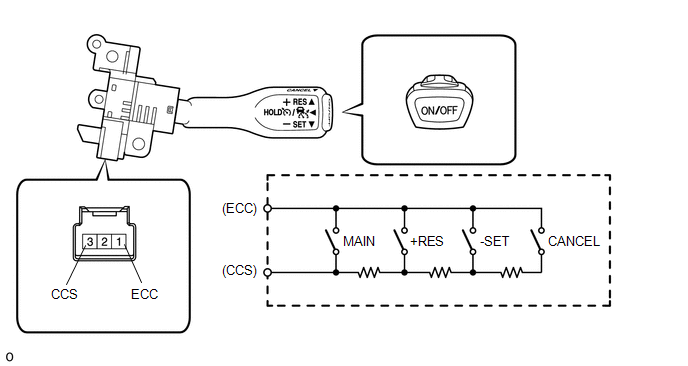

      GTY950027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        1 (ECC) - 3 (CCS) Neutral 10 MΩ or higher
        1 (ECC) - 3 (CCS) +RES 235 to 245 Ω
        1 (ECC) - 3 (CCS) -SET 617 to 643 Ω
        1 (ECC) - 3 (CCS) CANCEL 1509 to 1571 Ω
        1 (ECC) - 3 (CCS) Main switch off 10 MΩ or higher
        1 (ECC) - 3 (CCS) Main switch on Below 2.5 Ω
        1. If the result is not as specified, replace the cruise control main switch.
