Components [10/2015 - ]: Illustration

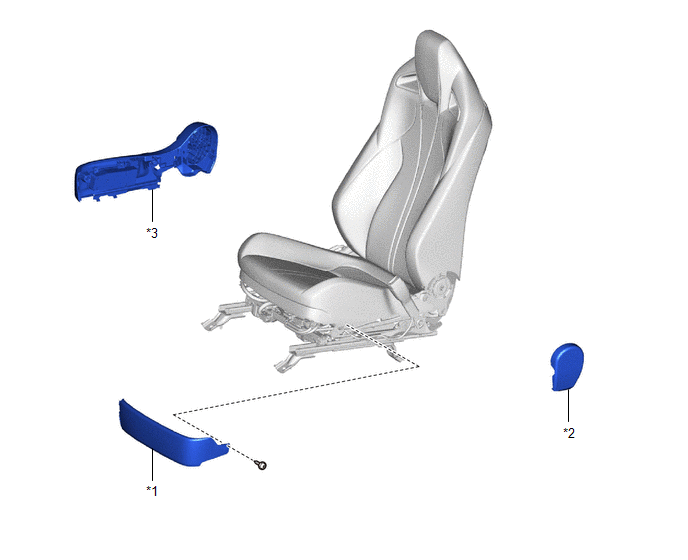

Fig 1: Occupant Detection Sensor Replacement Components (1 Of 2)
GTY642215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT INNER NO. 1 SEAT CUSHION SHIELD RH *2 FRONT INNER SEAT CUSHION SHIELD RH
*3 FRONT SEAT CUSHION SHIELD RH - -

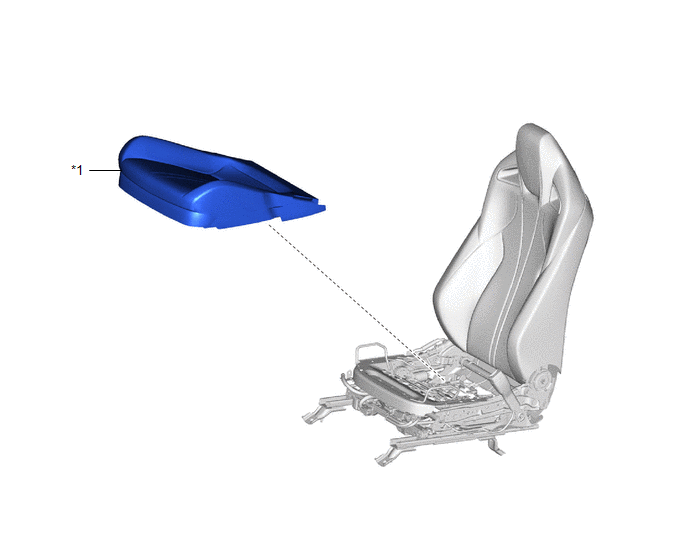

Fig 1: Occupant Detection Sensor Replacement Components (2 Of 2)
GTY656501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 OCCUPANT DETECTION SENSOR (FRONT SEAT CUSHION PAD WITH COVER RH) - -
