Components [10/2015 - ]: Illustration

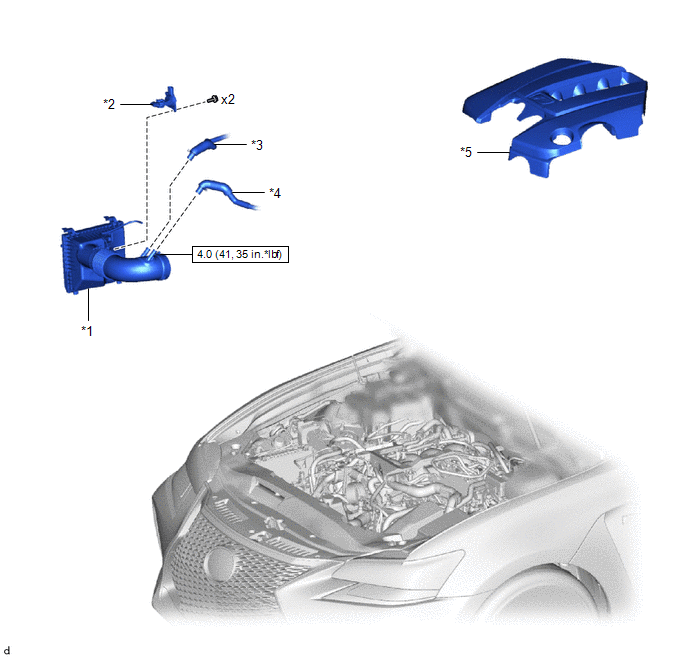

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications
GTY683075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CLEANER CAP WITH AIR CLEANER HOSE *2 MASS AIR FLOW METER SUB-ASSEMBLY
*3 NO. 2 VENTILATION HOSE *4 NO. 3 VENTILATION HOSE
*5 V-BANK COVER SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
