Reassembly [09/2017 - ]: Procedure

INSTALL COOLER CONTROL SWITCH KNOB

NOTE:

Prevention of static electricity is required during this procedure.
Use static electricity countermeasures SST (desktop anti-static mat set) and observe all precautions to prevent damage to the system by electrostatic discharge (ESD).

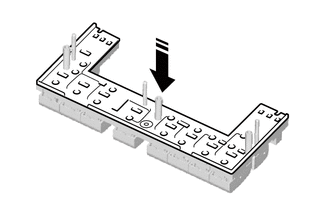

Push in the direction indicated by the arrows in the illustration to install the rubber switch to the cooler control switch knob.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this direction

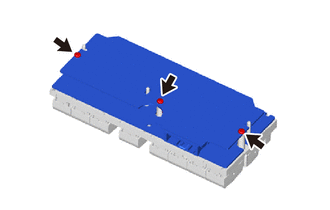

Install the 3 screws and circuit board sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When replacing the cooler control switch knob, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the circuit board sub-assembly from being damaged.
Do not damage the circuit board sub-assembly.

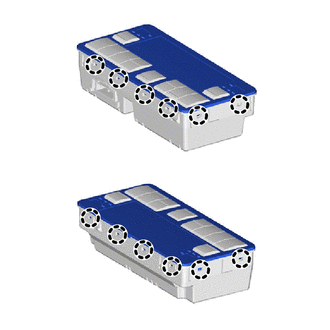

Push in the direction indicated by the arrows in the illustration to install the cooler control switch knob to the cooler control case.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this direction

NOTE:

When replacing the cooler control switch knob, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the circuit board sub-assembly from being damaged.
Do not damage the circuit board sub-assembly.

INSTALL COOLER CONTROL SWITCH PANEL

NOTE:

Prevention of static electricity is required during this procedure.
Use static electricity countermeasures SST (desktop anti-static mat set) and observe all precautions to prevent damage to the system by electrostatic discharge (ESD).

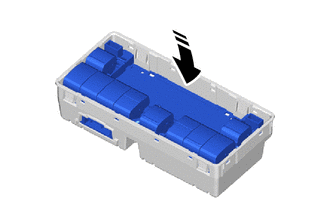

Engage the claws to install the cooler control switch panel.

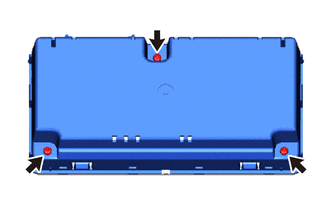

Install the 3 screws.
