Installation [10/2015 - ]: Procedure

  1. INSTALL ID CODE BOX (IMMOBILIZER CODE ECU)

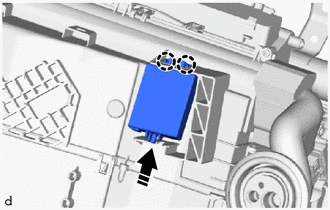

    1. Engage the claws as shown in the illustration.
      GTY636614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

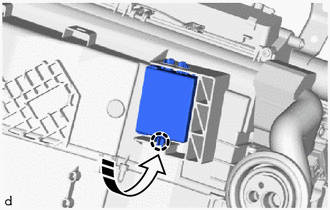

    2. Engage the claws to install the ID code box (immobilizer code ECU) as shown in the illustration.
      GTY684771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL AIR CONDITIONING UNIT ASSEMBLY

    Refer to INSTALLATION [10/2015 - ]
