Inspection [10/2015 - ]: Procedure

INSPECT CRUISE CONTROL MAIN SWITCH

Check the resistance.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Component without harness connected

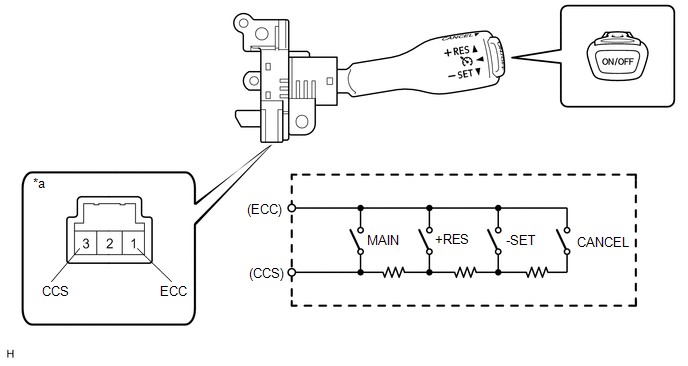

(Cruise Control Switch)

Standard Resistance

Tester Connection	Condition	Specified Condition
1 (ECC) - 3 (CCS)	Cruise control switch (ON/OFF button) released	1 MΩ or higher
	Cruise control switch (ON/OFF button) pushed	Below 2.5 Ω
	+/RES	235 to 245 Ω
	-/SET	617 to 643 Ω
	CANCEL	1509 to 1571 Ω

If the result is not as specified, replace the cruise control main switch.
