Components [09/2014 - ]: Illustration

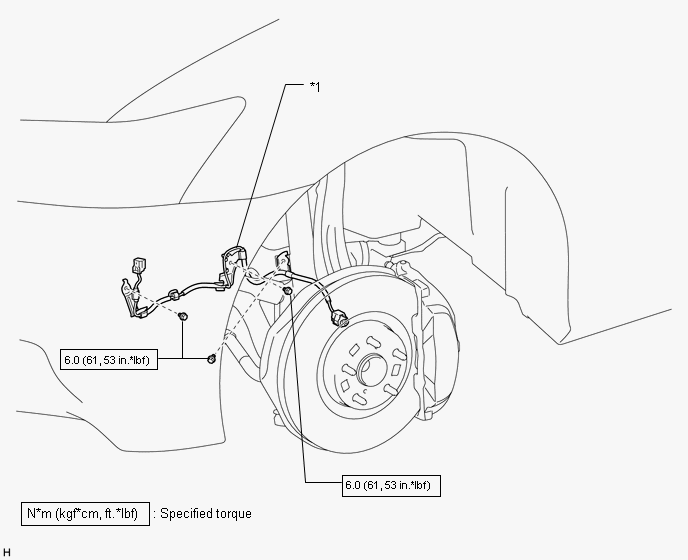

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY532795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

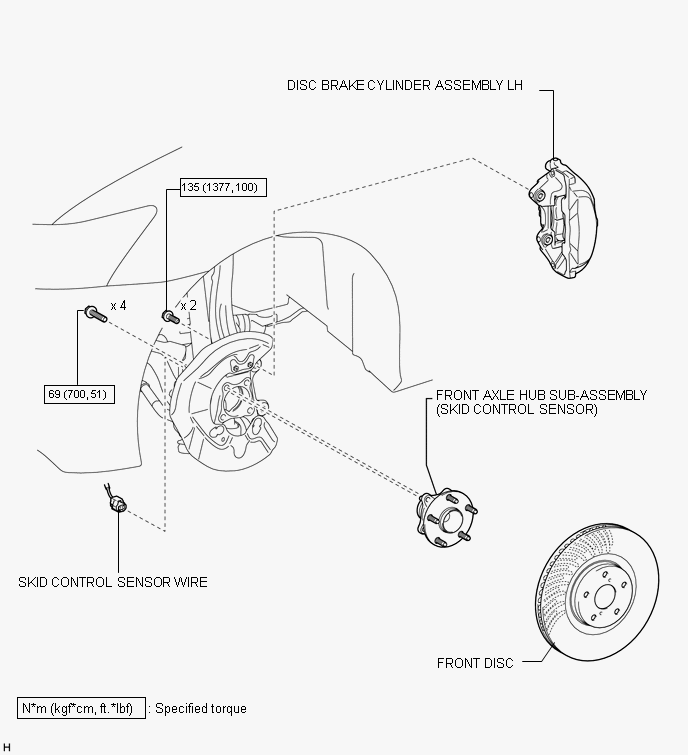

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY526185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
