Inspection [09/2014 - 10/2015]: Procedure
- INSPECT CRUISE CONTROL MAIN SWITCH

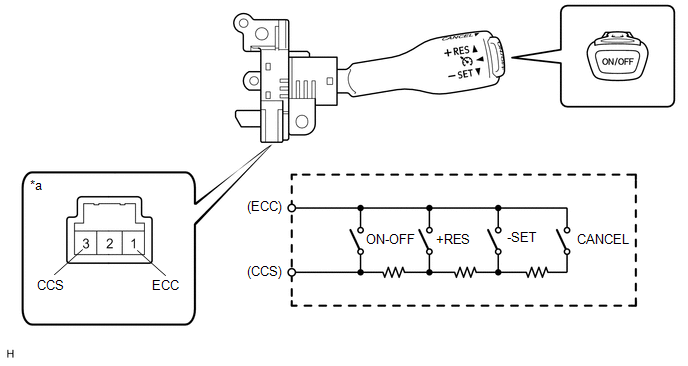

- for Cruise Control System:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*a Component without harness connected
(Cruise Control Main Switch)- - Standard Resistance
Tester Connection Switch Condition Specified Condition 1 (ECC) - 3 (CCS) +RES 235 to 245 Ω 1 (ECC) - 3 (CCS) -SET 617 to 643 Ω 1 (ECC) - 3 (CCS) CANCEL 1509 to 1571 Ω 1 (ECC) - 3 (CCS) Main switch off*1 1 MΩ or higher 1 (ECC) - 3 (CCS) Main switch on Below 2.5 Ω *1: Lever is in the neutral position
- If the result is not as specified, replace the cruise control main switch.
- Measure the resistance according to the value(s) in the table below.

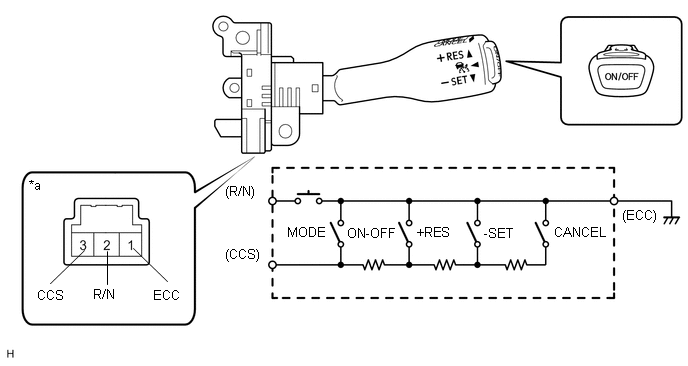

- for Dynamic Radar Cruise Control System:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*a Component without harness connected
(Cruise Control Main Switch)- - Standard Resistance
Tester Connection Switch Condition Specified Condition 1 (ECC) - 3 (CCS) +RES 235 to 245 Ω 1 (ECC) - 3 (CCS) -SET 617 to 643 Ω 1 (ECC) - 3 (CCS) CANCEL 1509 to 1571 Ω 1 (ECC) - 3 (CCS) Main switch off*1 1 MΩ or higher 1 (ECC) - 3 (CCS) Main switch on Below 2.5 Ω 1 (ECC) - 2 (R/N) Mode switch on Below 2.5 Ω *1: Lever is in the neutral position
- If the result is not as specified, replace the cruise control main switch.
- Measure the resistance according to the value(s) in the table below.
