Parts Location [09/2014 - 10/2015]: Illustration

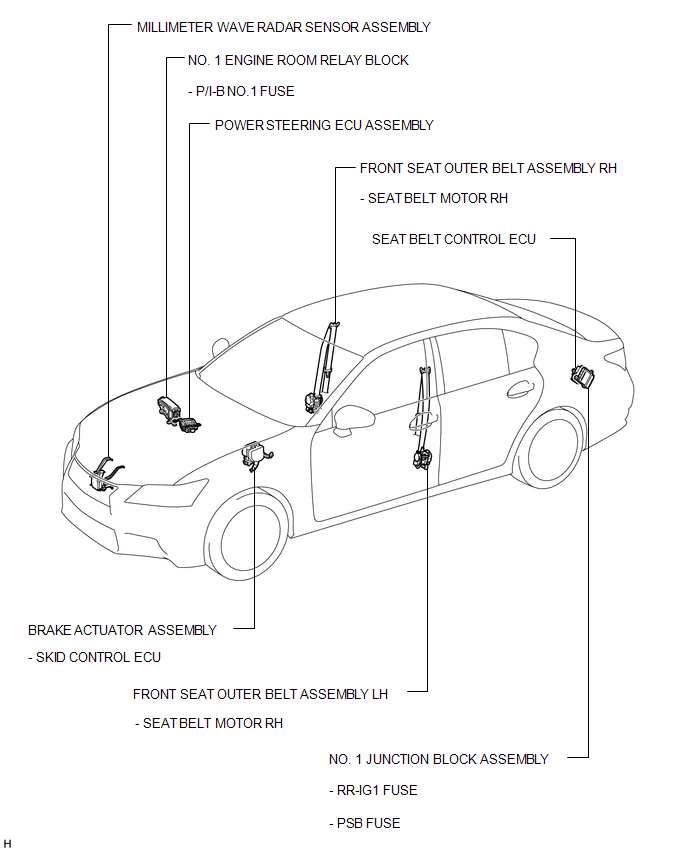

GTY680471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

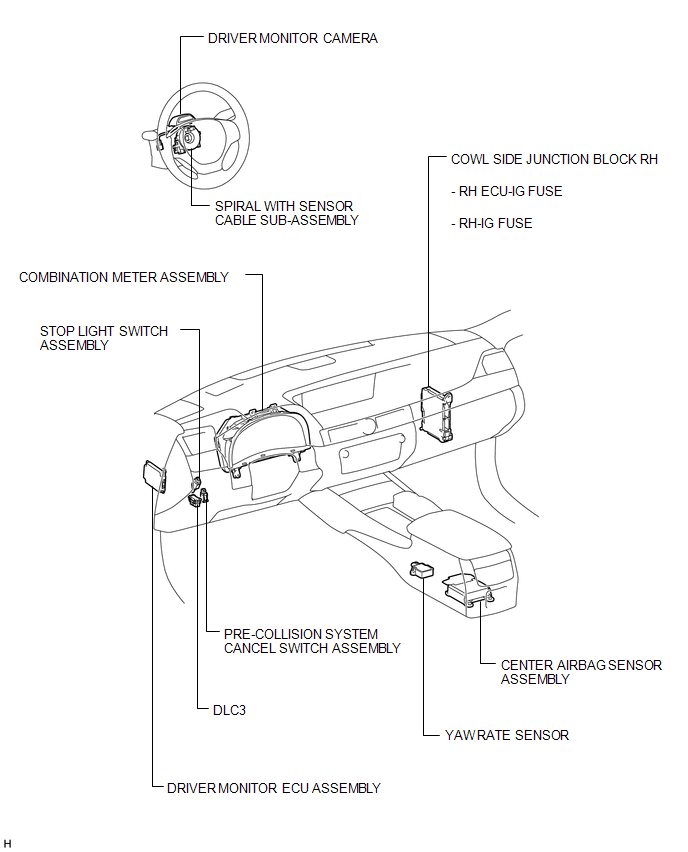

GTY413130

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

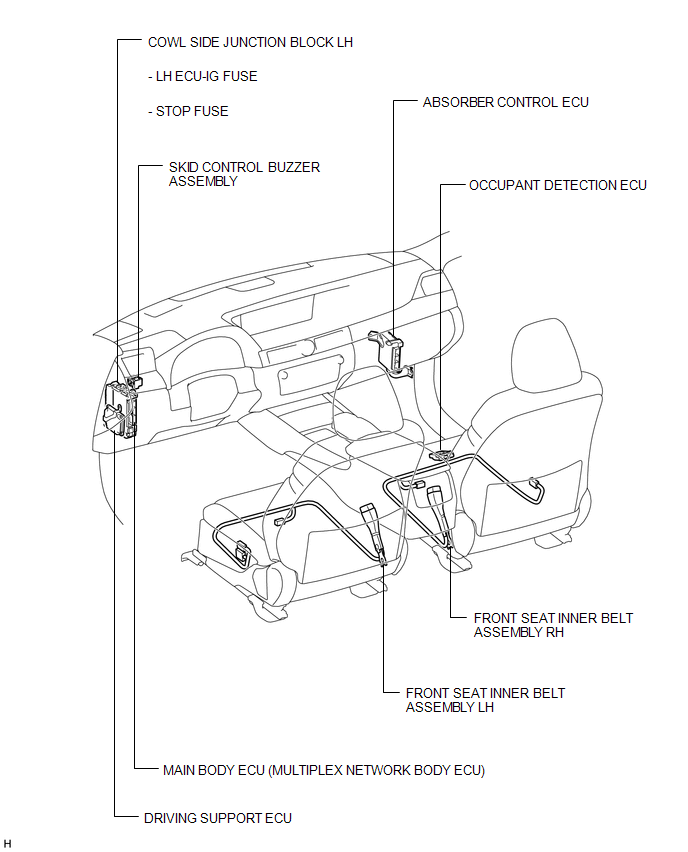

GTY681015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
