Removal [10/2015 - ]: Procedure

  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  5. REMOVE AIR CLEANER CAP AND HOSE

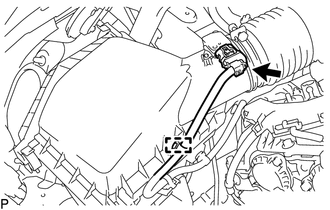

    1. Detach the wire harness clamp and disconnect the connector from the intake mass air flow meter sub-assembly.
      GTY658579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

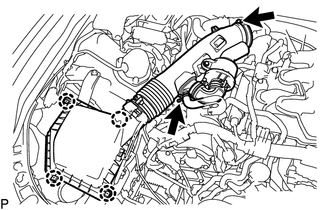

    2. Slide the clip and disconnect the No. 2 ventilation hose from the air cleaner hose.
    3. Loosen the hose clamp.
      GTY682650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Unfasten the 4 hook clamps, and then remove the bolt and air cleaner cap and hose.
  6. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. Slide the hose clamp and disconnect the No. 5 water by-pass hose from the throttle body with motor assembly.
      GTY658578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector from the throttle body with motor assembly.
      GTY658576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts, the throttle body with motor assembly and the gasket.
    4. Slide the hose clamp and disconnect the No. 4 water by-pass hose from the throttle body with motor assembly.
      GTY658577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
