Removal [10/2015 - ]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 2

  3. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Detach the wire harness clamp to disconnect the wire harness from the wire harness clamp bracket.

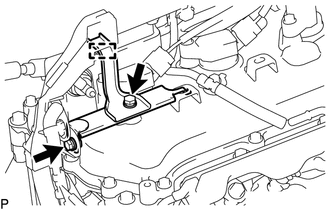

      GTY642231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and wire harness clamp bracket.
  4. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 6 connectors from the 6 ignition coil assemblies.
      GTY608950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 bolts and 6 ignition coil assemblies.
  5. REMOVE SPARK PLUG
    1. Remove the 6 spark plugs.
