Removal [10/2015 - ]: Procedure

REMOVE FRONT SEAT ASSEMBLY LH
- for for Standard Seat Type: Refer to REMOVAL [09/2014 - ]
- for Sports Seat Type: Refer to REMOVAL [09/2014 - ]
- for Luxury Seat Type: Refer to REMOVAL [09/2014 - ]
REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 3
REMOVE INSTRUMENT PANEL FINISH PANEL END LH (for 2WD)
Refer to PROCEDURE - Step 2

REMOVE FRONT FLOOR COVER LH (for AWD)

Remove the 3 nuts, 3 grommets and front floor cover LH.

GTY410809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

Detach the wire harness clamp and disconnect the connector.

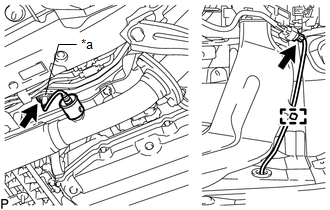

GTY630922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a

Grommet

Disconnect the grommet from the body.

Using SST, remove the heated oxygen sensor.

SST: 09224-00011

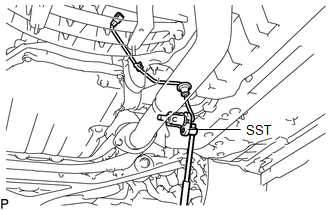

GTY680529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

for 2WD:

Detach the wire harness clamp, disconnect the connector and grommet.

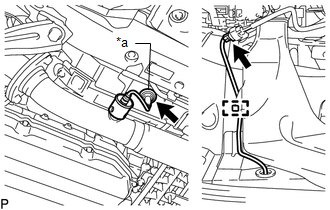

GTY681745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a

Grommet

for AWD:

Detach the 2 wire harness clamps, disconnect the connector and grommet.

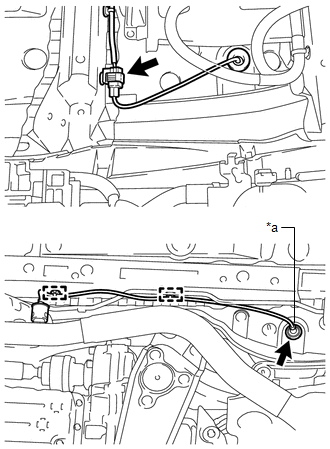

GTY641325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a

Grommet

Using SST, remove the heated oxygen sensor.

SST: 09224-00011

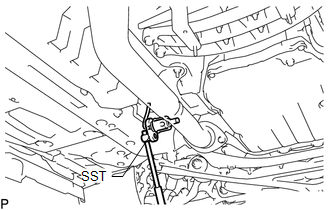

GTY672315

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
