Removal [10/2015 - ]: Procedure

  1. REMOVE POWER STEERING ECU ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE BATTERY TRAY
    1. Remove the 2 bolts and battery carrier.
      GTY638441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE ENGINE ROOM SIDE COVER LH

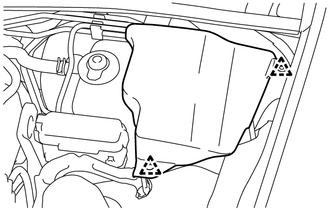

    1. Remove the 2 clips and engine room side cover LH.
      GTY678216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT NO. 3 ENGINE ROOM RELAY BLOCK

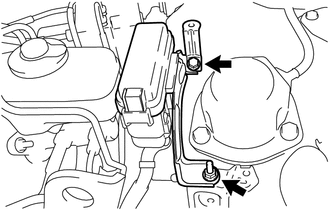

    1. Remove the bolt and nut, disconnect the No. 3 engine room relay block from the body.
      GTY638443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
    1. Disconnect the connector and detach the wire harness clamp.
      GTY658586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

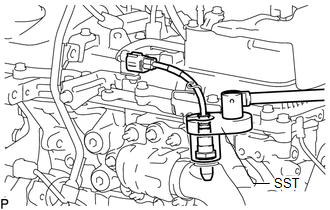

    2. Using SST, remove the air fuel ratio sensor.
      • SST: 09224-00011
      GTY665538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
    1. Disconnect the connector and detach the 2 wire harness clamps.
      GTY682653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

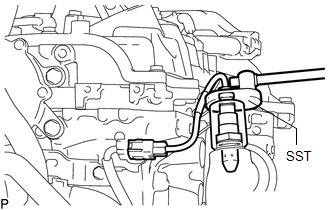

    2. Using SST, remove the air fuel ratio sensor.
      • SST: 09224-00011
      GTY628652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
