On-Vehicle Inspection [10/2015 - ]: Procedure

HINT:

Perform "Inspection After Repairs" after repairing air leaks in the intake system.

Refer to INITIALIZATION [10/2015 - 09/2018] or refer to INITIALIZATION [09/2018 - ]

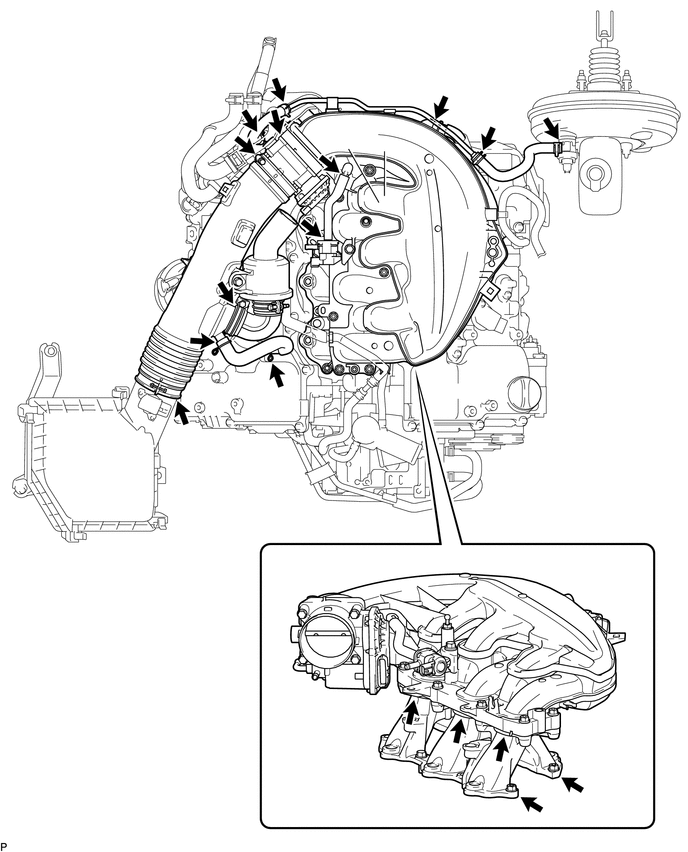

1. Check that there are no vacuum leaks at the points shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
