Installation [10/2015 - ]: Procedure

  1. INSTALL OIL LEVEL SENSOR BRACKET
    1. Install the engine oil level sensor bracket.
  2. INSTALL ENGINE OIL LEVEL SENSOR
    1. Apply a light coat of engine oil to the O-ring of theengine oil level sensor.

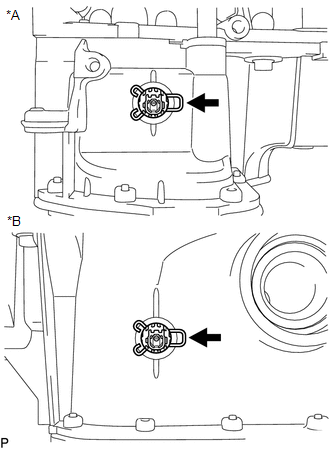

    2. Install a new clip to the engine oil level sensor as shown in the illustration.
      GTY639455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
    3. Install the engine oil level sensor with the 2 nuts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  3. INSTALL OIL WITH STRAINER PIPE SUB-ASSEMBLY (for AWD)

    See step  7 See step  7

  4. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY

    See step  8 See step  8

  5. ADD ENGINE OIL

    See step  5

  6. INSPECT FOR OIL LEAK

    See step  6

  7. INSPECT ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 2

  8. INSTALL FRONT SUSPENSION MEMBER BRACE (for 2WD)

    Refer to PROCEDURE - Step 111

  9. INSTALL ENGINE UNDER COVER

    Refer to PROCEDURE - Step 115
