Installation [10/2015 - ]: Procedure

INSTALL GENERATOR ASSEMBLY

Install the generator bracket to the generator assembly with the bolt.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
Install the generator assembly with the 2 bolts.
Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

Connect the generator bracket with nut and stud bolt.

for nut

Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

for stud bolt

Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

	Stud Bolt
	Nut

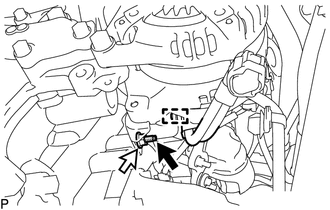

Attach the clamp and connect the wire harness to the generator bracket.
Install the generator connector.
Connect the wire harness to thr terminal B with the nut.
Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)
Install the terminal cap.
Attach the clamp.

INSTALL COOLER COMPRESSOR ASSEMBLY
- for 2WD:
  Refer to INSTALLATION [10/2015 - ]
- for AWD:
  Refer to INSTALLATION [10/2015 - ]
INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL FAN AND GENERATOR V BELT
Refer to INSTALLATION [10/2015 - ]
INSTALL ENGINE UNDER COVER
Refer to PROCEDURE - Step 115
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [10/2015 - ]
