Removal [09/2014 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    (Refer to REMOVAL [09/2014 - ] )

  2. REMOVE NO. 1 CONSOLE BOX MOUNTING BRACKET

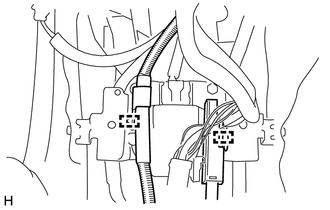

    1. Disconnect the clamp and indoor electrical key oscillator from the No. 1 console box mounting bracket.
      GTY414581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

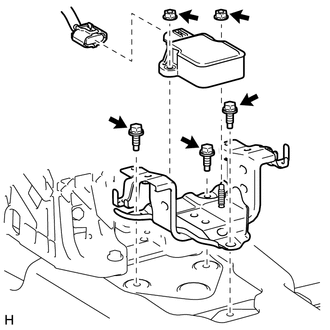

    2. Disconnect the sensor connector.
      GTY417033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 bolts and No. 1 console box mounting bracket.
  3. REMOVE YAW RATE SENSOR
    1. Remove the 2 nuts and yaw rate sensor from the No. 1 console box mounting bracket.
      NOTE:

      If the yaw rate sensor is dropped, replace it.
