Components [09/2014 - ]: Illustration

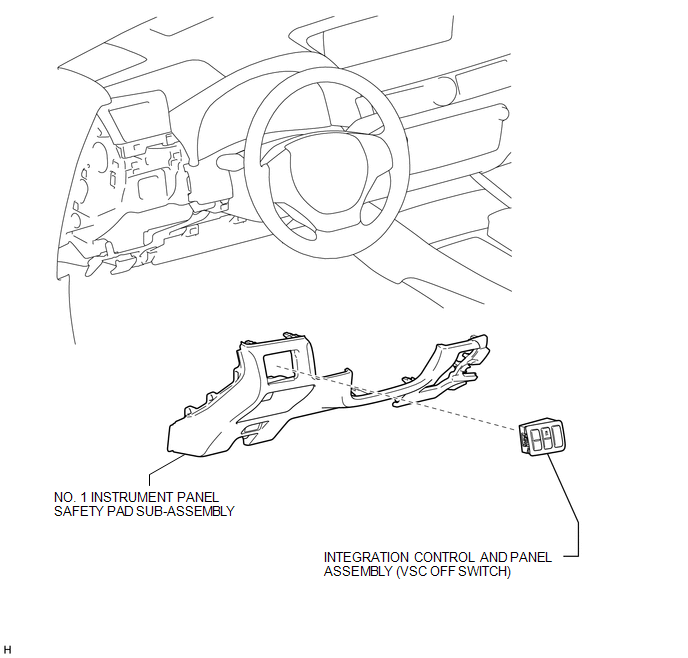

Fig 1: VSC Off Switch Replacement Components

GTY532380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
