Removal [09/2014 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    (Refer to REMOVAL [09/2014 - 10/2015] or refer to REMOVAL [10/2015 - ] )

  2. REMOVE SKID CONTROL BUZZER ASSEMBLY

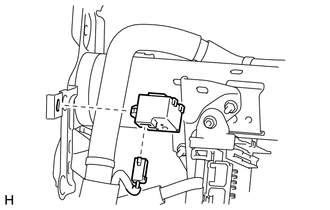

    1. Detach the clamp and remove the skid control buzzer.
      GTY399285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
