Disassembly [09/2014 - 10/2015]: Procedure

  1. REMOVE BRAKE ACTUATOR BRACKET ASSEMBLY

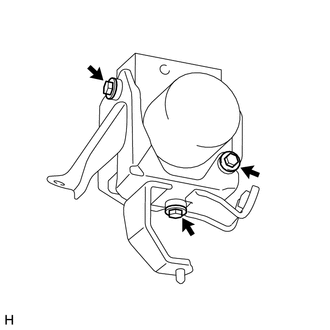

    1. Remove the 3 bolts and brake actuator bracket from the brake actuator assembly.
      NOTE:
      • Do not hold the actuator by the connector.
      • If the actuator is dropped, replace it.
      GTY400556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BRAKE ACTUATOR CASE COLLAR

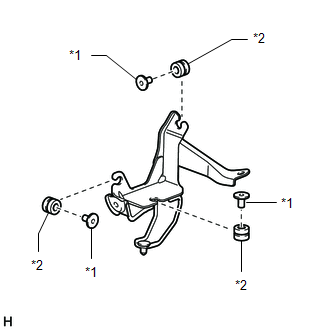

    1. Remove the 3 brake actuator case collars from the brake actuator bolt cushions.
      GTY638272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Brake Actuator Case Collar
      *2 Brake Actuator Bolt Cushion
  3. REMOVE BRAKE ACTUATOR BOLT CUSHION
    1. Remove the 3 brake actuator bolt cushions from the brake actuator bracket.
