Installation [07/2015 - ]: Procedure

  1. INSTALL TRANSMISSION REVOLUTION SENSOR
    1. Coat the 2 bolts with ATF.

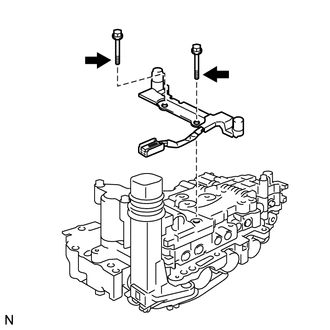

      GTY587748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the transmission revolution sensor to the transmission valve body assembly with the 2 bolts.

      Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

    3. Connect the connector.
  2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

    (Refer to INSTALLATION [07/2015 - ] )
