Removal [07/2015 - ]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [07/2015 - ]

  2. REMOVE NO. 1 SURGE TANK STAY

    Refer to PROCEDURE - Step 3

  3. REMOVE IGNITION COIL ASSEMBLY

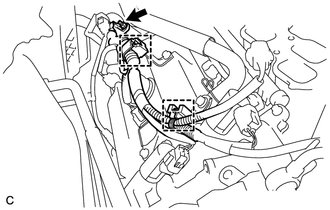

    1. Remove the nut.
      GTY319073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 harness clamps.
    3. Disconnect the 6 ignition coil assembly connectors.
      GTY302713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 6 bolts and 6 ignition coil assemblies.
      GTY307940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SPARK PLUG
    1. Remove the 6 spark plugs.
      GTY194824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
