Inspection [07/2015 - ]: Procedure
- INSPECT ENGINE SWITCH

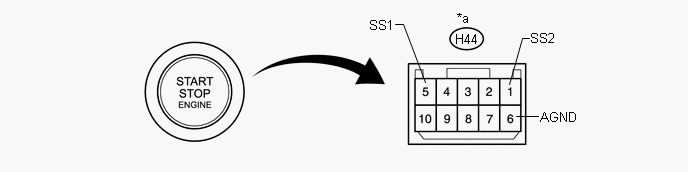

- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*a Component without harness connected
(Engine Switch)- - Standard Resistance
Tester Connection Condition Specified Condition H44-5 (SS1) - H44-6 (AGND) Not pushed 10 kΩ or higher H44-1 (SS2) - H44-6 (AGND) H44-5 (SS1) - H44-6 (AGND) Pushed Below 1 Ω H44-1 (SS2) - H44-6 (AGND) If the result is not as specified, replace the engine switch.

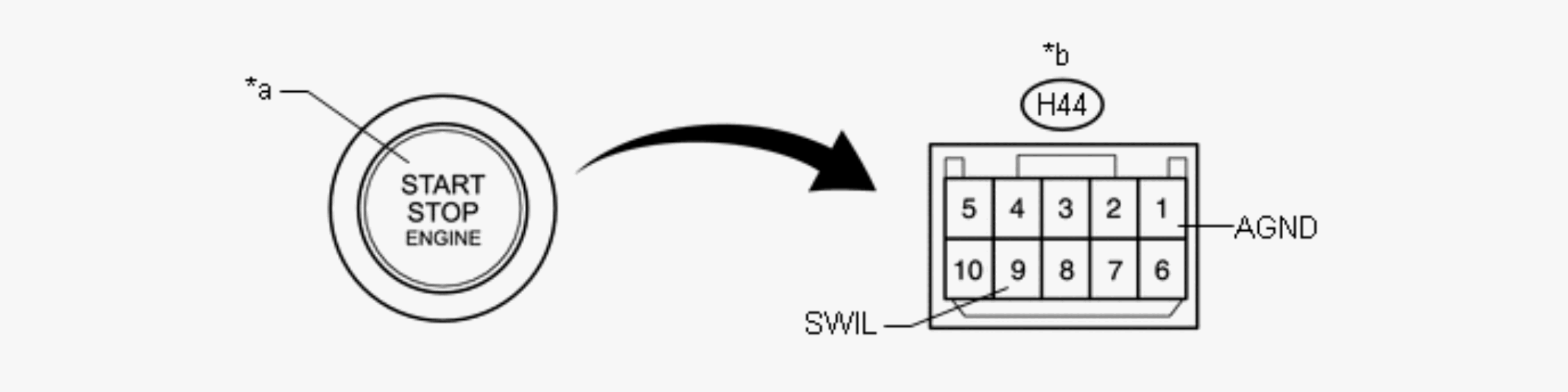

- Apply battery voltage between the terminals of the switch, and check the illumination condition of the engine switch.TEXT IN ILLUSTRATION
*a Indicator Light *b Component without harness connected
(Engine Switch)OK
Measurement Condition Specified Condition Battery positive (+) → Terminal H44-9 (SWIL)
Battery negative (-) → Terminal H44-6 (AGND)Illuminates HINT:
- If a positive (+) battery lead and a negative (-) battery lead are incorrectly connected, the engine switch indicator light will not illuminate.
- If the voltage is too low, the indicator light will not illuminate.
If the result is not as specified, replace the engine switch.
- Measure the resistance according to the value(s) in the table below.
