Removal [07/2015 - ]: Procedure

  1. REMOVE AIR CONDITIONING UNIT ASSEMBLY (for TMK Made)

    (Refer to REMOVAL [07/2015 - ] )

  2. REMOVE AIR CONDITIONING UNIT ASSEMBLY (for TMMK Made)

    (Refer to REMOVAL [07/2015 - ] )

  3. REMOVE ID CODE BOX (IMMOBILISER CODE ECU)

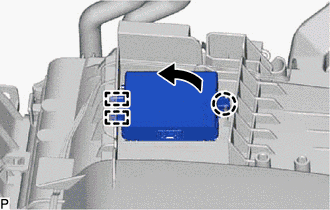

    1. Disengage the claw as shown in the illustration.
      GTY409376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the ID code box (immobiliser code ECU).
