Installation [07/2015 - ]: Procedure

INSTALL FORWARD RECOGNITION CAMERA

When using a new forward recognition camera:

Remove the protective film.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not touch the camera lens after removing the protective film.

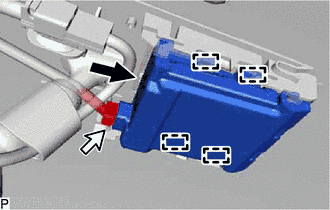

Engage the 4 guides as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not touch the camera lens.

INSTALL FORWARD RECOGNITION LATCH

NOTE:

Before installing the forward recognition latch, make sure that the forward recognition camera is securely installed to the vehicle.

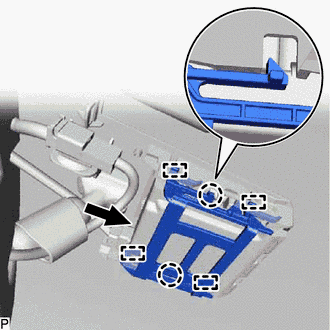

Engage the 4 guides and 2 claws as shown in the illustration to install the forward recognition latch.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 1 FORWARD RECOGNITION COVER

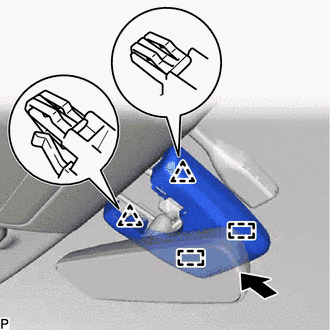

Engage the 2 clips and 2 guides as shown in the illustration to install the No. 1 forward recognition cover.

INSTALL NO. 2 FORWARD RECOGNITION COVER

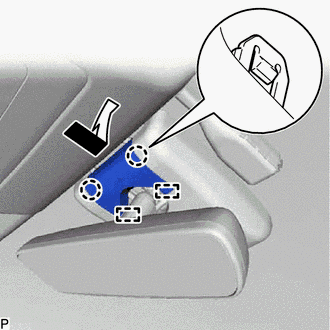

Engage the 2 guides and 2 claws to install the No. 2 forward recognition cover as shown in the illustration.

ADJUST FORWARD RECOGNITION CAMERA
1. If the forward recognition camera has been replaced with a new one or the windshield glass has been removed and installed, it is necessary to perform Forward Recognition Camera Learning.
  Refer to ADJUSTMENT [07/2015 - ]
