Inspection [07/2015 - ]: Procedure

INSPECT CRUISE CONTROL MAIN SWITCH

for vehicles without vehicle-to-vehicle distance control mode:

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

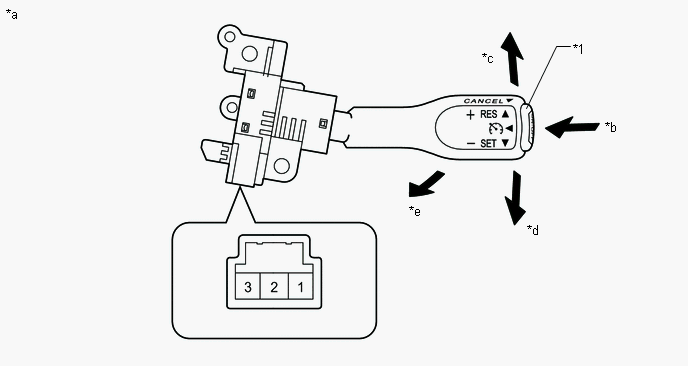

TEXT IN ILLUSTRATION

*1	Cruise Control Switch (ON/OFF button)	-	-
*a	Component without harness connected (Cruise Control Switch)	*b	ON-OFF
*c	+/RES	*d	-/SET
*e	CANCEL	-	-

Standard Resistance

Tester Connection	Condition	Specified Condition
1 - 3	Cruise control switch (ON/OFF button) released	1 MΩ or higher
	Cruise control switch (ON/OFF button) pushed	Below 2.5 Ω
	+/RES	235 to 245 Ω
	-/SET	617 to 643 Ω
	CANCEL	1509 to 1571 Ω

If the result is not as specified, replace the cruise control main switch.

for vehicles with vehicle-to-vehicle distance control mode:

Measure the resistance according to the value(s) in the table below.

TEXT IN ILLUSTRATION

*1	Cruise Control Switch (ON/OFF button)	-	-
*a	Component without harness connected (Cruise Control Switch)	*b	ON-OFF
*c	+/RES	*d	-/SET
*e	CANCEL	-	-

Standard Resistance

Tester Connection	Condition	Specified Condition
1 - 3	Cruise control switch (ON/OFF button) released	1 MΩ or higher
	Cruise control switch (ON/OFF button) pushed	Below 2.5 Ω
	+/RES	235 to 245 Ω
	-/SET	617 to 643 Ω
	CANCEL	1509 to 1571 Ω

If the result is not as specified, replace the cruise control main switch.
